Portable Drone Detector with 12km Detection Range 100MHz-6.2GHz Wideband Detection and 24 Hours Continuous Operation

Number

Name

Specifications

1

Identification types

Supports mainstream drones such as DJI, Autel, Hubsan, as well as FPV racing drones and DIY drones

2

Frequency range

Supports customizable scanning from 70 MHz to 6.2 GHz.
Default detection bands: 400 MHz, 800 MHz, 900 MHz, 1.2 GHz, 1.4 GHz, 2.4 GHz, 5.2 GHz, 5.8 GHz (other bands can be customized)

3

Positioning models

Full range of DJI drones, selected models from Autel

4

Detection range

≥10 km for mainstream drones, ≥2 km for FPV drones

5

DID/RID positioning range

DID≥10km,RID≥3km

6

Positioning accuracy

≤10 m

7

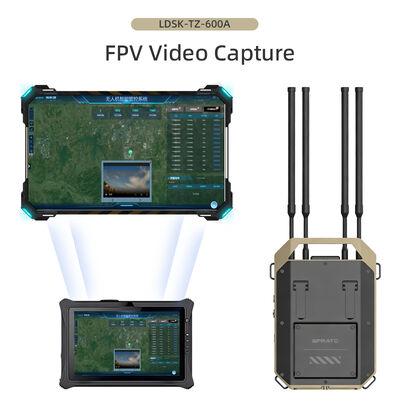

FPV video signal detection

Supports analog video transmission detection within the 500 MHz – 6 GHz band (customizable)

8

Detection radius

≥1.5 km (line-of-sight, clean electromagnetic environment)

9

Video capture distance

≥1.5 km (line-of-sight, clean electromagnetic environment)

10

Detection response time

≤3 s (8 frequency bands); ≤5 s (12 frequency bands)

11

Power supply

Lithium battery powered

12

Battery life

≥6 hours (main unit)

13

Device weight

≤8 kg

14

Device dimensions

343 mm × 230 mm × 86 mm (L × W × H)
