LLSKF09 Vehicle-mounted FPV UAV Jammer
| محل منبع | گوانگدونگ ، چین |
|---|---|
| نام تجاری | LDSK |
| شماره مدل | LDSKC01 |
| مقدار حداقل تعداد سفارش | 1 |
| قیمت | $1820 |
| زمان تحویل | 7-10 روز کاری |
| شرایط پرداخت | D/A ، D/P ، T/T ، Western Union ، MoneyGram ، PayPal |
| قابلیت ارائه | 5000 قطعه در ماه |
برای نمونه ها و کوپن های رایگان با من تماس بگیرید.
واتساپ:0086 18588475571
وی چت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.
xجزئیات محصول
| باند فرکانس تشخیص | 400–550 / 550–700 / 700–840 / 840–1000 / 1000–1300 / 2400–2500 / 5100–5300 / 5700–5900 مگاهرتز (پشتی | قدرت خروجی | 400W |
|---|---|---|---|
| آنتن | 3-8 دسی بل | زاویه کار آنتن | همه جهته 360 درجه (عمودی)؛ 65 درجه افقی |
| فاصله دور زدن | 300-2000 متر (بستگی به محیط و هدف دارد) | پهپادهای قابل شناسایی | DJI، AUTEL، FIMI، PowerVision، YUNEEC و غیره. |
| برجسته کردن | IP65 Protection Portable Drone Detector,Real-time Tracking UAV Detection System,Portable Design Drone Tracking System,Real-time Tracking UAV Detection System,Portable Design Drone Tracking System |
||
توضیحات محصول

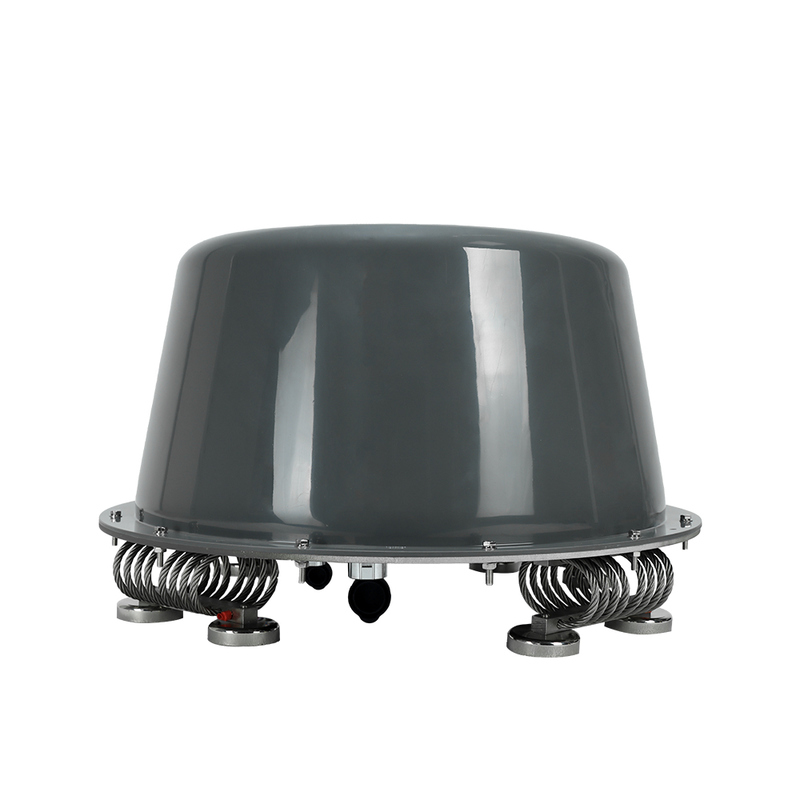

LLSKF09 Vehicle-mounted FPV UAV Jammer
Product Description
TTSKF09 is a high-power vehicle-mounted FPV UAV jammer that disables remote-control and video transmission links, forcing unauthorized drones to return or land. Rugged, roof-installable, and built for mobile protection.
Key Features
-
Purpose-built for vehicles — Roof-mount design protects moving cars, trucks, and convoys.
-
Multi-band coverage — Supports 400–1300 MHz, 2.4 GHz, 5.1–5.9 GHz and common FPV bands.
-
High total output power — 400W total output for robust jamming performance.
-
Wide jamming range — 300–2000 m (depends on target RC/FPV power, antenna height and environment).
-
Flexible power — Works from DC 24–29V with optional 40Ah external battery for off-grid use.
-
360° protection — Omnidirectional vertical coverage and wide horizontal coverage for continuous defense.
-
Simple control — Supplied remote control panel for easy operation while on the move.
-
Rugged and portable — Compact dimensions (Φ60cm × 35cm) and 20 kg curb weight.
Product Specifications
| Item | Specification |
|---|---|
| Model | LLSKF09 |
| Working Frequency | 400–550 / 550–700 / 700–840 / 840–1000 / 1000–1300 / 2400–2500 / 5100–5300 / 5700–5900 MHz (support/customized) |
| Output Power | 400 W (total) |
| Power Consumption | ≈ 900 W |
| Antenna Gain | 3–8 dBi |
| Antenna Working Angle | Omnidirectional 360° (vertical); 65° horizontal |
| Jamming Distance | 300–2000 m (depends on environment & target) |
| Power Supply | DC 24–29 V (external battery); battery charged by AC 220 V |
| External Battery (Optional) | 40 Ah (approx. 1 hour working time under typical load) |
| Control Method | Remote control panel |
| Dimension | Φ60 cm × 35 cm |
| Weight | 20 kg |
| Operating Temperature | -20 °C to +65 °C |
