Full Frequency 10km Range Portable UAV Detector Locate Drone and Pilot Position Comprehensive DJI Aeroscope Detection

محصولات

دستگاه نصب شده بر روی وسیله نقلیه

آنتن ضد هواپیماهای بدون سرنشین

دتکتور قابل حمل برای هواپیماهای بدون سرنشین

Full Frequency 10km Range Portable UAV Detector Locate Drone and Pilot Position Comprehensive DJI Aeroscope Detection

مقدار تولیدی:	یک قطعه
بسته بندی استاندارد:	808060 سانتی متر 40 کیلوگرم
دوره تحویل:	5-8 روز کاری
روش پرداخت:	D/A، D/P، T/T، Western Union، MoneyGram، Paypal
ظرفیت تامین:	5000PCS در ماه

جزئیات اطلاعات

توضیحات محصول

جزئیات اطلاعات

محل منبع

گوانگدونگ، چین

نام تجاری

LDSK

شماره مدل:

LDSKC01

قطعنامه:

1080P، 1920*1200 پیکسل

مصرف برق:

100 وات

ضد آب و ضد گرد و غبار:

IP65

ولتاژ تغذیه خارجی:

100 ~ 220 ولت AC

آماده برای استفاده:

120S

ارتفاع:

0 متر تا 1000 متر

بسته حمل و نقل:

کارتن

مشخصات:

520x415x224mm

منشاء:

چین

اندازه بسته:

55.00 * 43.00 * 25.00 سانتی متر

وزن ناخالص بسته:

25000 کیلوگرم

وزن:

20 کیلوگرم

شانل:

900م 1.2g 2.4G 5.2g 5.8g

محدوده:

1-10 کیلومتر (با توجه به محیط و مدل هواپیمای بدون سرنشین متفاوت است)

نمونه ها:

19000 دلار آمریکا / قطعه 1 قطعه (حداقل سفارش) |

سفارشی سازی:

در دسترس. درخواست سفارشی

پرداخت اولیه پرداخت کامل

مقدار حداقل تعداد سفارش:

یک قطعه

جزئیات بسته بندی:

80*80*60 سانتی متر 40 کیلوگرم

زمان تحویل:

5-8 روز کاری

شرایط پرداخت:

D/A، D/P، T/T، Western Union، MoneyGram، Paypal

قابلیت ارائه:

5000PCS در ماه

برجسته کردن:

DJI Aeroscope Detection Portable UAV Detector,Locate Pilot Position Portable UAV Detector,10km Range Portable UAV Detector

Locate Pilot Position Portable UAV Detector

10km Range Portable UAV Detector

توضیحات محصول

Please leave your WhatsApp and Email,we will contact you!

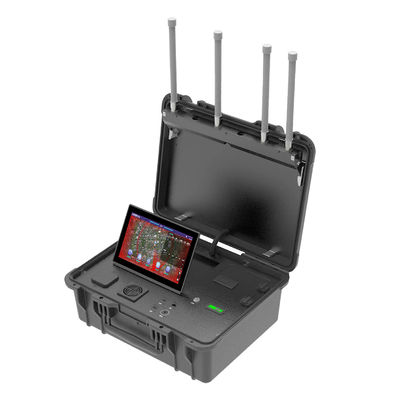

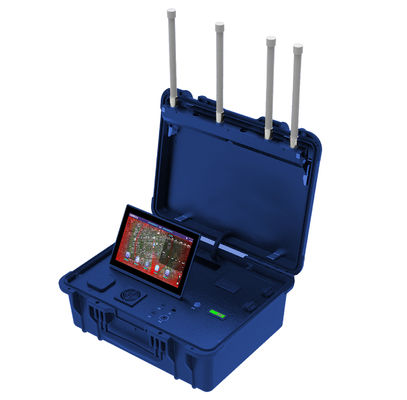

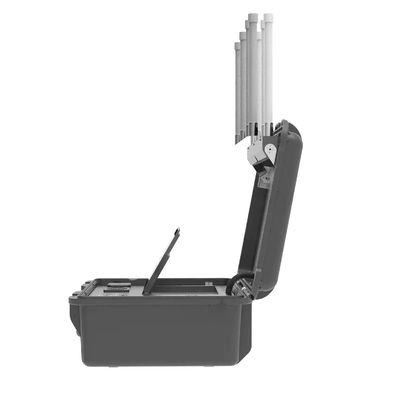

LDSKC01 portable drone detector Gray is a briefcase style drone detection device for drone monitoring.

It is used for monitoring drone information such as SN code, model, location (longitude/latitude, azimuth, distance), speed, height, altitude, home spot,controller location(longitude/latitude, azimuth, distance) etc.

LDSKC01 works offline or online (optional). It is easy to carry, deploy, and use via touch screen,works against DJI Mavic, Air, Mini, FPV, Avata series,also Autel,parrot drones,etc.

Work mode	RF sensing
Azimuth error	≤1.5°(RMS)
Frequency	900MHz,1.2GHz,2.4GHz,5.2GHz,5.8GHz
Range	1-10km (varies due to environment and drone model)
Screen size	10.1 inches
Resolution	1080P,1920*1200 pixels
Power consumption	≤100W
Waterproof&Dust Proof	IP65
Operating temperature	-20~65ºC
Storage temperature	-40~70ºC
Location error	≤10m
External supply voltage	100 ~ 220V AC
Drone model that can be detected	DJI,AUTEL,FIMI,DAHUA, PowerVision,YUNEEC,UDIRC and other common brands of drones and some self-made FPVs and WiFi drones
Drone can be located	DJI Mavic,Air,Mini,FPV,Avata series,three devices together can detect and locate other drone brands.
Size	(520mm415mm224mm)±2mm,Case closed
Ready to use	≤120s
Weight	20kg,
Detection result refresh time	4~6s,Varies due to environment and
Drone swarm detection	≥5 drones
Altitude	0m~1000m
Working Time	4 hours,External power supply or larger capacity battery can be used to extend the working time

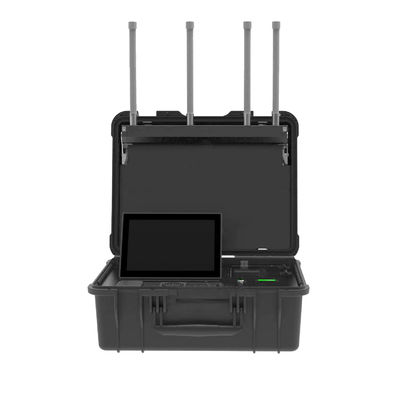

Equipment composition:

Full Frequency 10km Range Portable UAV Detector Locate Drone and Pilot Position Comprehensive DJI Aeroscope Detection 1

1. Antenna

2. Display screen

3. Battery compartment

4. Power switch

5. Battery level display

6. GNSS antenna

7. Fan

8. USB interface × two

9. Ethernet interface

10. External power interface
